Basic specifications:
Light source power: 5W/6W/8W/10W/12W/15W
Rated power: 210W/210W/270W/270W/270W/410W
Input voltage: 110V/220V 50HZ/60HZ
Light source brands: Nichia, Mitsubishi, imported LD light source from Japan
Scanning angle: Max 60 °
Mirror: 20K/25K/30K/40K/50K
Cooling method: High speed air cooling (with built-in cooling fan system)
Protection level: IP65 waterproof
Working temperature: -20 to+45 degrees Celsius
Light source lifespan: over 20000 hours
Body information
Net weight of product: 14.3KG
Product size: 42 * 39 * 20cm
Packaging weight: 15.7KG (cardboard box packaging)
Packaging size: 52 * 48 * 27cm (carton size)
Other functions
Protection system: When the beam energy is focused to the minimum point for a long time, it automatically turns off the light
Analog modulation: 100k Analog/TTL red green blue laser power adjustable from 0-100

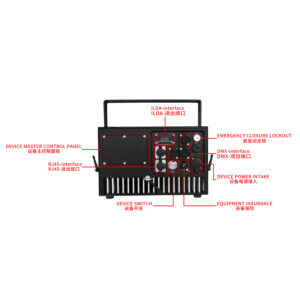

ILDA mode: International standard 25 pin (device with built-in FB4 or external FB4, used when controlled by computer software)
DMX mode: Caron head three pin DMX512 (used for console control, if the device has built-in FB4, an optional DMX motherboard is required to use)
Self driving mode: voice control/self driving/master-slave (use this option when no controller is used, if the device has built-in FB4, voice control cannot be used)
