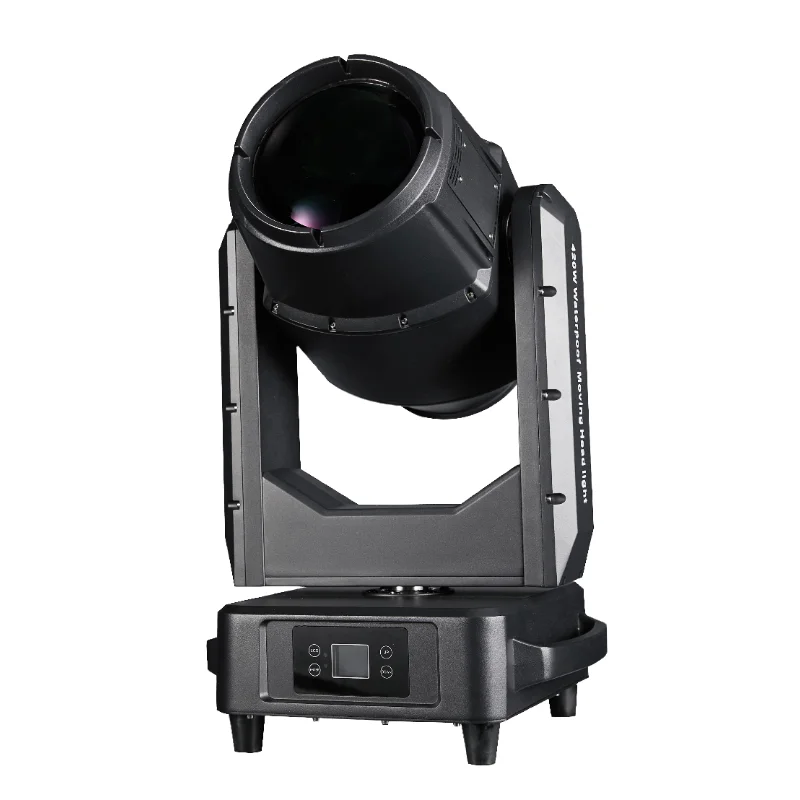

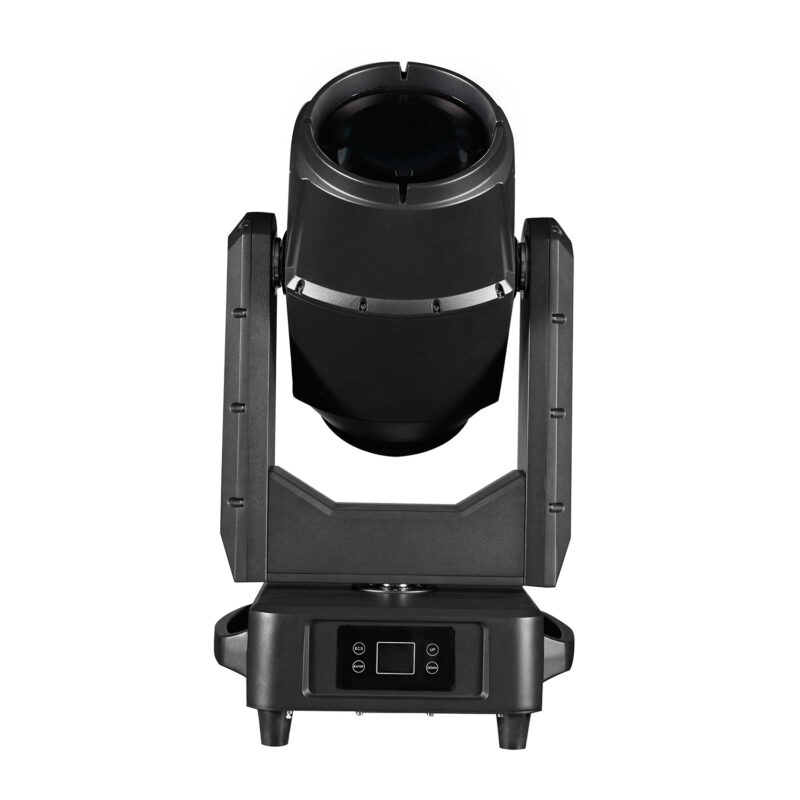

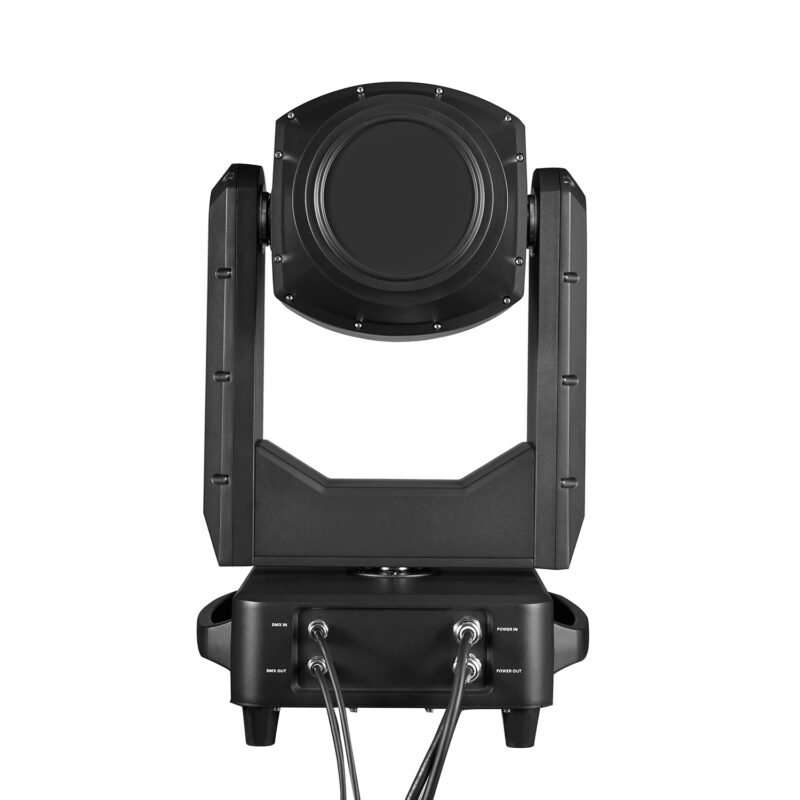

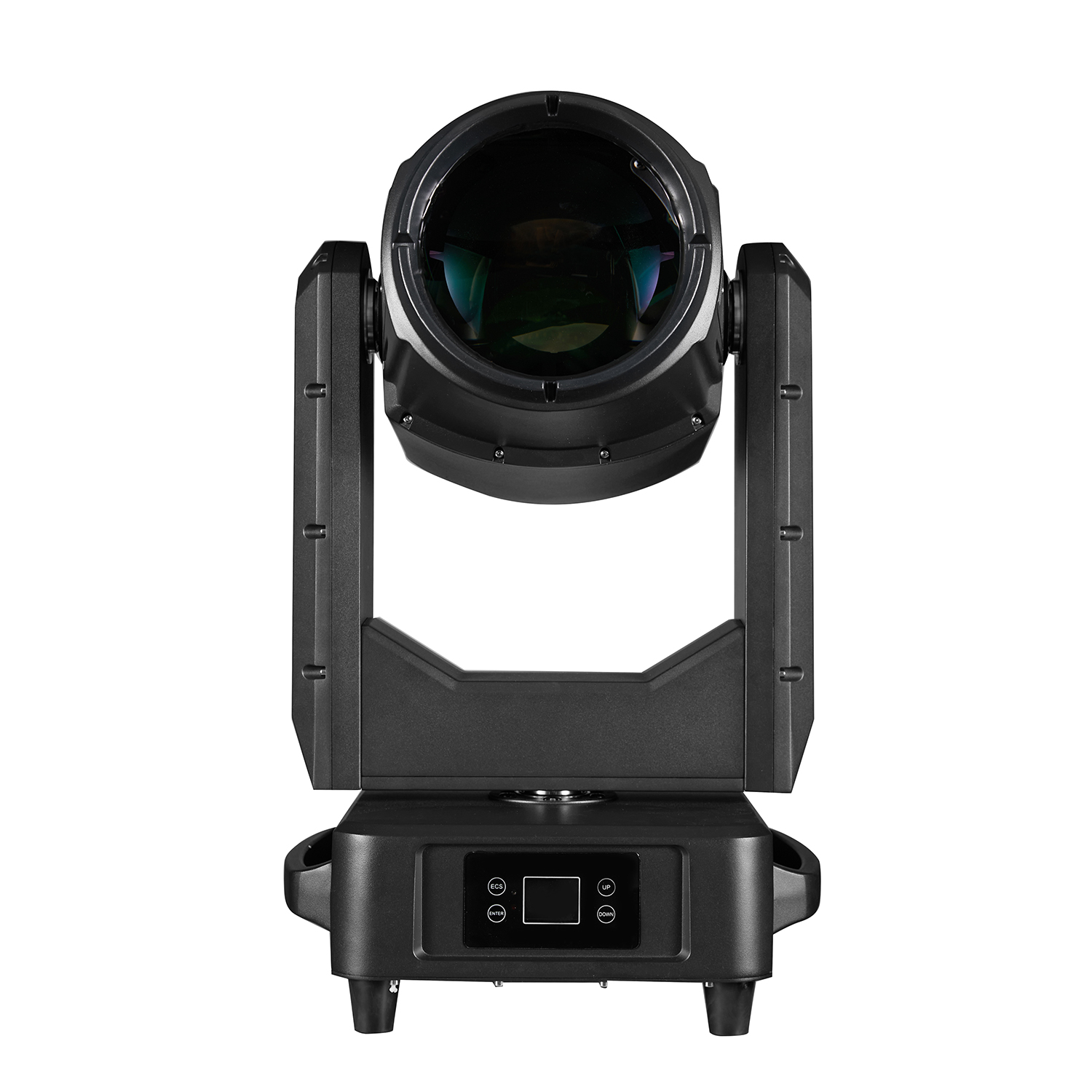

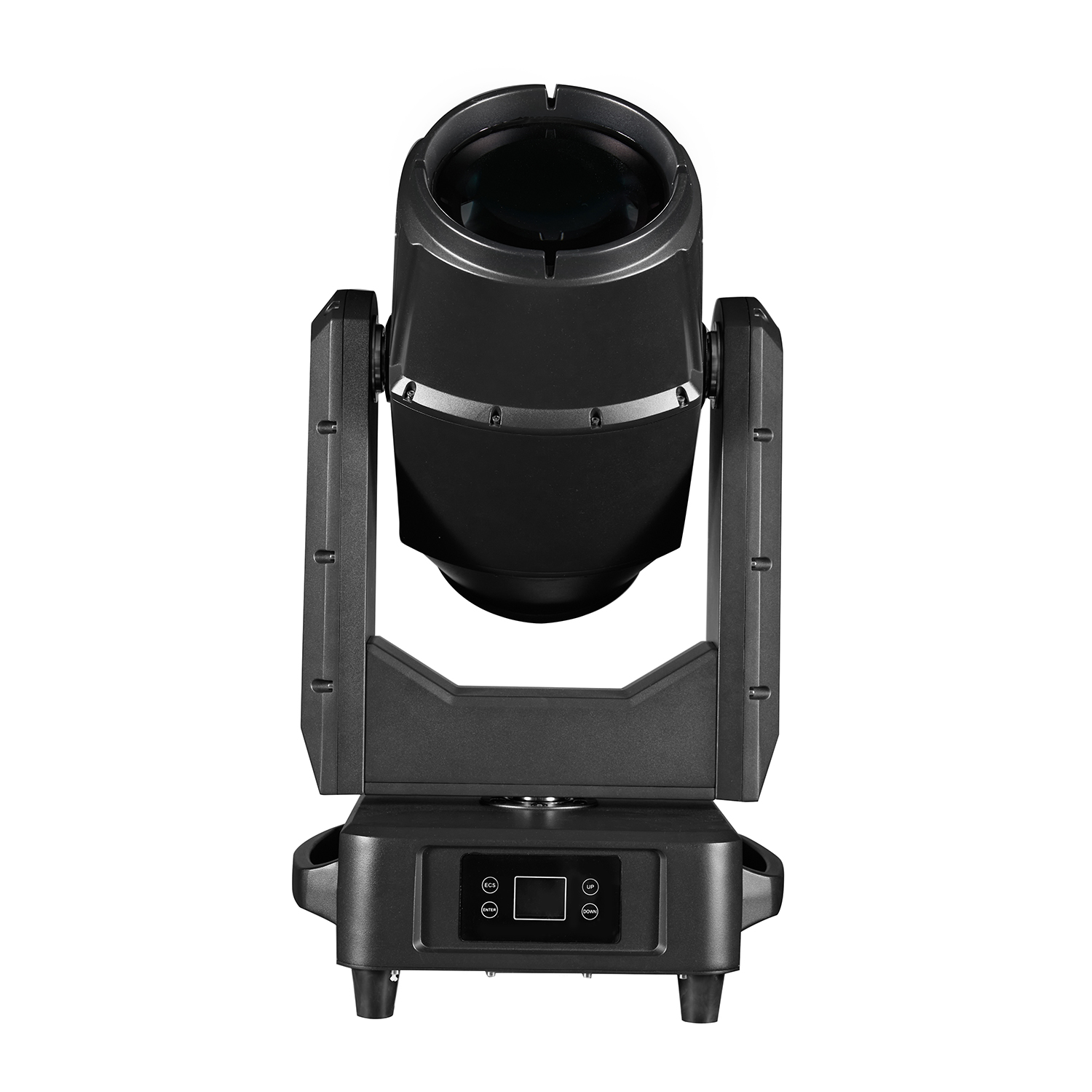

New base fully sealed 380W IP66 waterproof beam light

Embrace a brand new lighting experience – the new base fully sealed 380 waterproof beam lamp provides top-notch light and shadow effects for various stage performances with its advanced design and excellent performance. This lamp not only has powerful functions, but also undergoes full sealing treatment to ensure stable operation in various environments. Whether indoors or outdoors, it can impress with its outstanding performance.

FEATURES
Light source system: equipped with Philips 380 bulbs, color temperature 7900 ± 500K, bringing bright and uniform light to the stage.
Color&Pattern System: Equipped with 14 color palettes, rainbow effects, 17+1 pattern palettes, rich and colorful light and shadow effects can be controlled at your fingertips.
Atomization function: Built in atomization function can achieve soft light effect and enhance visual hierarchy.
Prism system: equipped with 8+16 prisms, dual prism rotation, adjustable speed, adding more variations to the beam effect.
Protection level: IP66, fully waterproof and dustproof design, suitable for various harsh environments.

Light Source / Power System
Voltage:AC 90V-235V
Power: 600W
Light Source: Philips 380 light bulb
CCT：7900±500K

Color / GOBO / Effects
Color system: includes 14 color palettes, rainbow effects, and atomization function, achieving rich and colorful light and shadow effects.
Pattern system: 17 fixed patterns and 1 white light pattern, suitable for diverse performance needs.
Focusing system: Electronic focusing ensures precise focusing of the beam.
Atomization function: Built in atomization function can achieve soft light effect and enhance visual hierarchy.
Prism system: equipped with 8+16 prisms, dual prism rotation, adjustable speed, adding more variations to the beam effect.

Other Functions
Motor system: The XY axis uses three-phase motors to provide high stability and precise positioning, ensuring smooth operation and stable speed of the lighting fixtures.
Dimming curve: 0% -100% linear dimming, smooth without flicker, suitable for various performance scenes.
Beam angle: 0-2 °, providing strong and concentrated beam effects.
Control channel: Supports 16 or 20 channels, flexibly meeting different control requirements.
Lens diameter: 180mm, large lens design ensures powerful beam output.
Protection level: IP66, fully waterproof and dustproof design, suitable for various harsh environments.
Control mode: Supports DMX 512 standard and is compatible with multiple control systems.
Display screen: LCD display screen, rotatable 180 °, suitable for different installation positions.
Horizontal and Vertical Motion: High precision three-phase motor, with a horizontal rotation of 540 ° (resolution 8/16Bit, with fine adjustment) and a vertical rotation of 270 ° (resolution 8/16Bit, with fine adjustment), providing smooth and stable motion and automatic correction positioning.

Body information
Shell: Made of fully cast aluminum, sturdy, durable and modern.
Lamp body size: 695*398*326mm, compact design suitable for various installation scenarios.
Net weight: 27KG, strong stability, suitable for professional stage use.
