Basic specifications:
Light source power: 2W/4W
Rated power: 150W/210W
Light source brands: Nichia, Mitsubishi, imported LD light source from Japan
Scanning angle: Max 60 °
Mirror: 20K/25K/30K/40K/50K
Cooling method: High speed air cooling (with built-in cooling fan system)
Protection level: IP54
Working temperature: -20 to+45 degrees Celsius
Light source lifespan: over 20000 hours
Body information
Net weight of product: 5.1KG

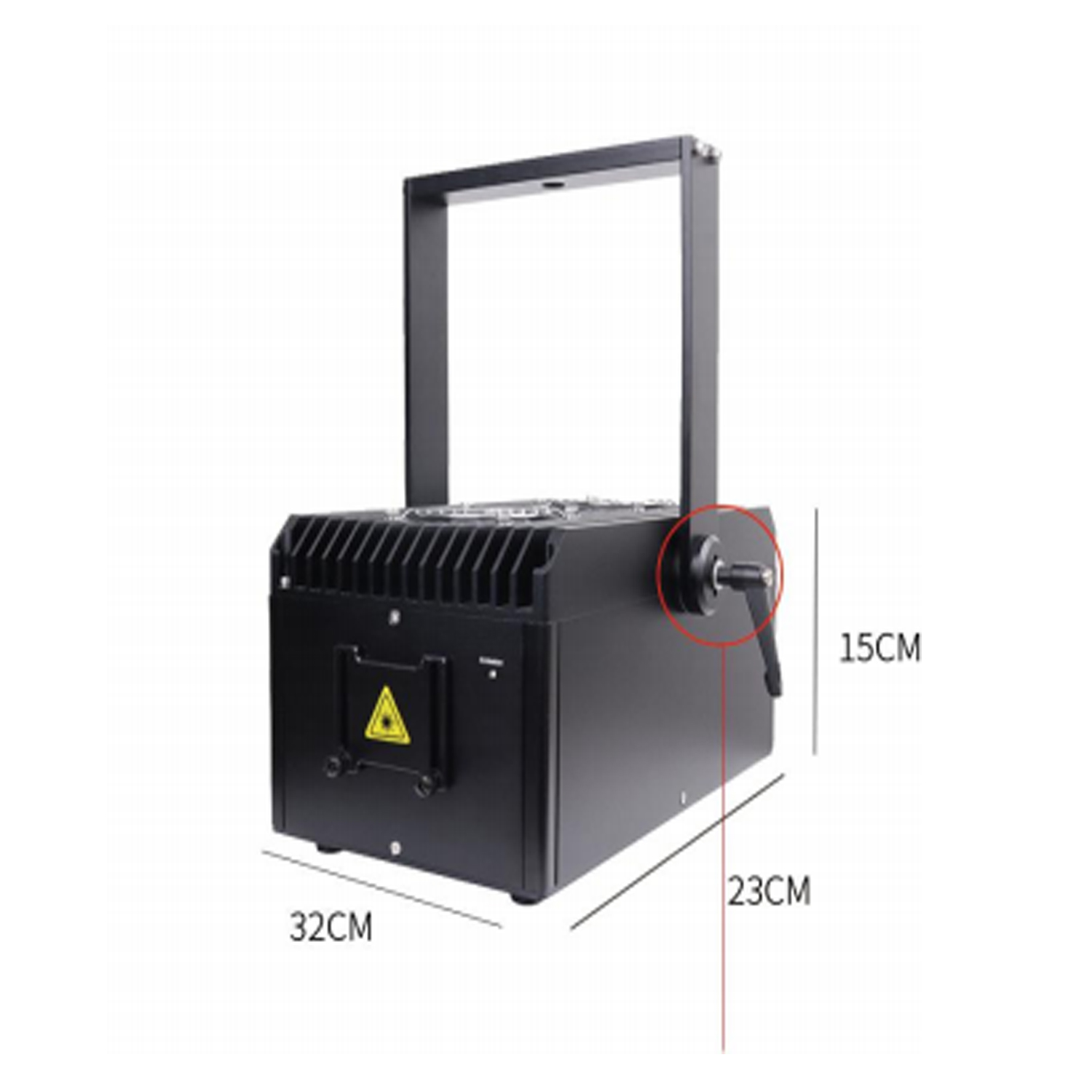

Product size: 32 * 23 * 15cm
Packaging weight: 6.05KG (cardboard box packaging)
Packaging size: 42 * 23 * 22cm (carton size)
Other functions
Protection system: When the beam energy is focused to the minimum point for a long time, it automatically turns off the light
Analog modulation: 100k Analog/TTL red green blue laser power adjustable from 0-100
ILDA mode: International standard 25 pin (device with built-in FB4 or external FB4, used when controlled by computer software)
DMX mode: Caron head three pin DMX512 (used for console control, if the device has built-in FB4, an optional DMX motherboard is required to use)
Self driving mode: voice control/self driving/master-slave (use this option when no controller is used, if the device has built-in FB4, voice control cannot be used)
